Ball Valves

All Categories

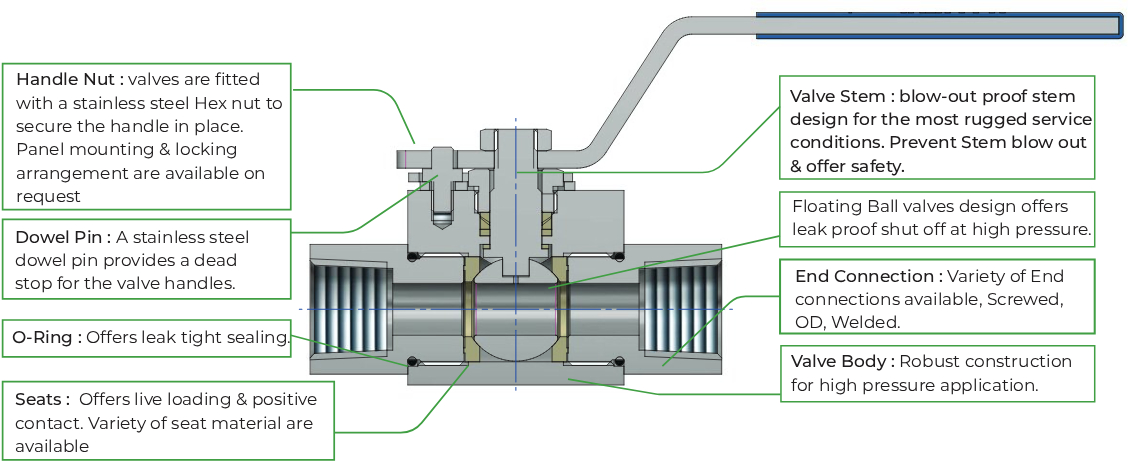

Features

Max. Pressure : 15000 psi @ 100° F
Temp. : -40° F to 400° F (-40° C to 204° C)
Material : SS 316, SS 316L, CS, Monel, Inconel, Duplex, Super Duplex, Hastelloy
Size : 1/8” to 1”
Orifice : 4 mm to 25 mm
Locking : With or without lock type Handle
Positive/Live loaded Seals
Low torque operation.
Antiblow out Safety feature.
Precision machined balls reduces torque & provide uniform Sealing.
Available with NACE MR0175 option.
Longer SS lever handle for easy operation.
Available with panel mounting option.

Sour Gas Service

Valves can be supplied with wetted parts complying with NACE MR0175/MR0103 and ISO 15156 offering highest resistance to sulphide stress cracking.

Pressure / Temperature Rating

PRESSURE / TEMPERATURE RATING
Seal Material	Temperature	Pressure Rating
DELRIN	0° C to 100° C	up to 6000 psi
PEEK	-17° C to 300° C	up to 6000 psi
PTFE	0° C to 120° C	up to 3000 psi

Testing

100% Factory tested.
Each Ball valve is tested with Air/N2 at 1000 psi (69 bar).
Hydrostatic Seat Test – 1.1 times of MWP, Hydrostatic Shell Test – 1.5 times of MWP
Optional tests are available on request.

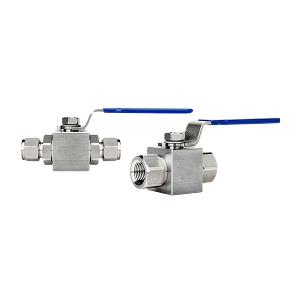

Instrumentation - i series

Instrumentation - i series

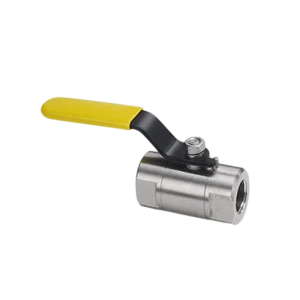

Round Body

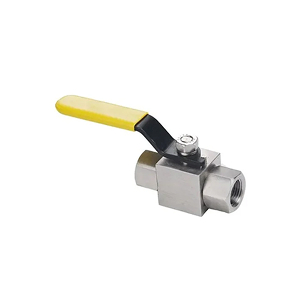

Square Body
