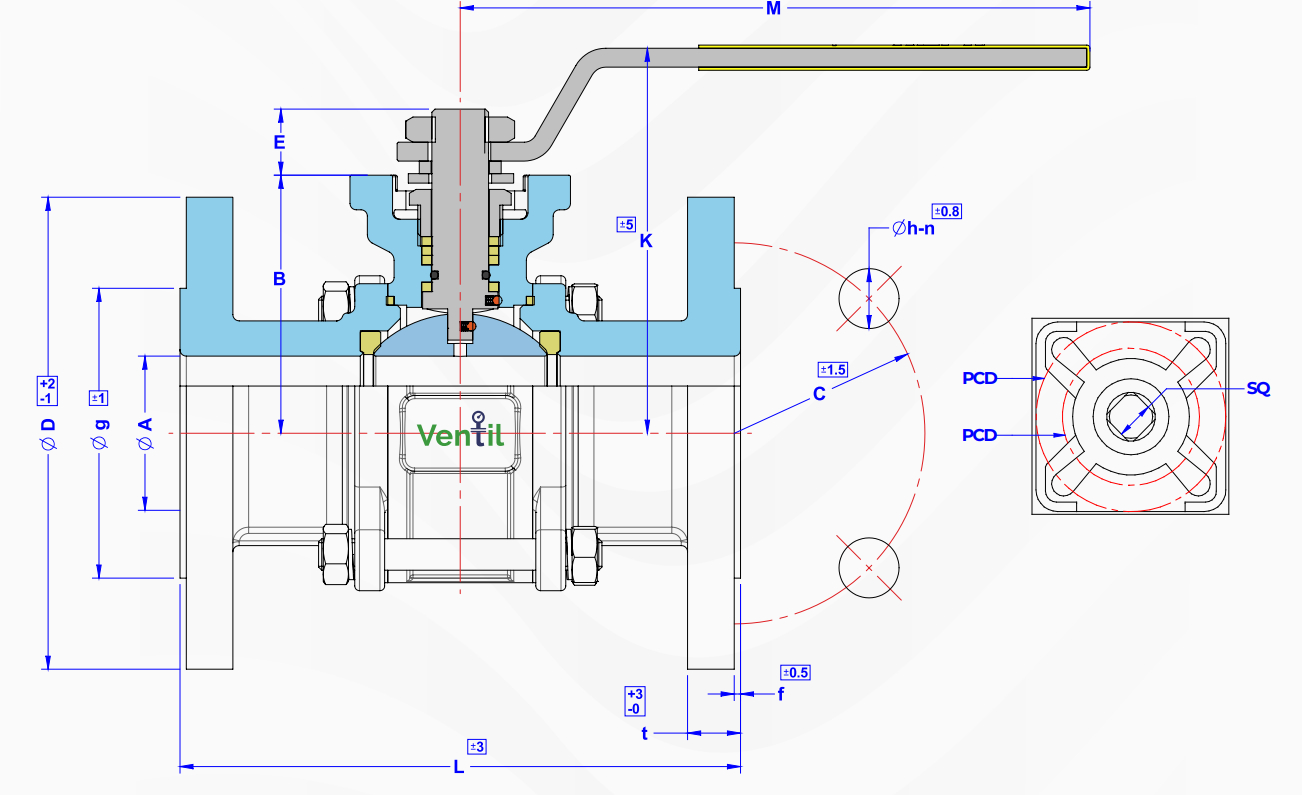

3-Piece Full Bore Ball Valves 150#

SIZE	A	B	E	L	K	M	D	C	h	n	t	g	f	w (kg) 3PC HANDLE	SQ.	PCD	E	w (kg) 3PC ACT.
1/2″	15	50	15	115	76	145	95	65	14	4	16	45	2	2.4	9	42/50	9	–
3/4″	20	55	15	120	82	145	105	75	14	4	18	58	2	3	9	42/50	9	–
1″	25	60.5	15	125	90	175	115	85	14	4	18	68	2	3.9	11	42/50	12	–
1 1/4″	32	73.5	21	130	114	175	140	100	18	4	18	78	2	5.4	11	50/70	12	–
1 1/2″	38	73.5	21	140	114	200	150	110	18	4	18	88	3	7.4	14	50/70	14	–
2″	50	82	21	150	123	200	165	125	20	4	20	102	3	9.4	14	50/70	14	–
2 1/2″	63.5	100	26	170	146	265	185	145	18	4	18	122	3	12.8	17	70/102	17	–
3″	76	110	26	180	156	265	200	160	20	8	20	138	3	16.6	17	70/102	22	–
4″	100	135	28.5	190	182	400	220	180	20	8	20	158	3	22.5	22	70/102	27	–
6″	150	200	27	350	276	800	285	240	22	8	22	212	3	56	27	102/125	27	–

SIZE	A-S.E	A-T.C	B	E	L	K	M	D	H	G	SQ.	PCD	E
1/2″	15	15	50	15	65	76	145	34	30.45	24.55	9	42/50	9
3/4″	20	20	55	15	75	82	145	34	30.45	24.55	9	42/50	9
1″	25	25	60.5	15	85	90	175	50.5	46.45	40.55	11	42/50	12
1 1/4″	32	32	70.5	15	85	100	175	50.5	46.45	40.55	11	50/70	12
1 1/2″	38	32	73.5	21	120	114	200	50.5	46.45	40.55	14	50/70	14
2″	50	42.5	82	21	130	123	200	64	59.45	53.55	14	50/70	14
2 1/2″	63.5	63.5	100	26	165	146	265	91	86.45	80.55	17	70/102	17
3″	76	76	110	26	185	156	265	106	99.95	94.05	17	70/102	22
4″	100	100	135	28.5	230	182	400	119	112.95	107.05	22	70/102	27
