Combination Double Ball Check: For Service to 10,000 PSI

All Categories

Combination Double Ball Check

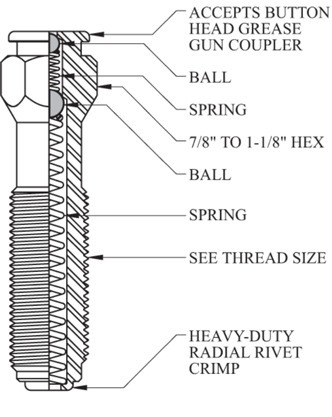

The Combination Double Ball Check Injectors are high-pressure industrial lubrication components engineered for dual-purpose lubricant or stick injection up to 10,000 PSI. They feature a dual-layer check system utilizing two independent ball and spring mechanisms to provide complete redundancy against hazardous fluid backflow. The design is built with a heavy-duty radial rivet crimp, interfaces perfectly with standard button head grease gun couplers, and features integrated hex profiles ranging from 7/8″ to 1-1/8″ for reliable torque application.
COMBINATION DOUBLE BALL CHECK: FOR SERVICE TO 10,000 PSI
Thread Size MOC Part No Surface Treatment Heat Treatment Ball Spring OAL
3/4″ NPSM 1215 / EN1A CLF2P12-CS Zinc – – – AISI 52100 (HCHC) Chrome Alloy 302 SS 4-5/8″
316 SS CLF2P12-SS – – – Annealed (NACE) K-Monel / Tungsten Carbide Inconel® X-750 4-5/8″
1/2″ NPSM 1215 / EN1A CLF2P8-CS Zinc – – – AISI 52100 (HCHC) Chrome Alloy 302 SS 3-5/8″
316 SS CLF2P8-SS – – – Annealed (NACE) K-Monel / Tungsten Carbide Inconel® X-750 3-9/16″
3/8″ NPSM 1215 / EN1A CLF2P6-CS Zinc – – – AISI 52100 (HCHC) Chrome Alloy 302 SS 3-1/4″
316 SS CLF2P6-SS – – – Annealed (NACE) K-Monel / Tungsten Carbide Inconel® X-750 3-1/4″
1/4″ 1215 / EN1A CLF2P4-CS Zinc – – – AISI 52100 (HCHC) Chrome Alloy 302 SS 2-7/16″
316 SS CLF2P4-SS – – – Annealed (NACE) K-Monel / Tungsten Carbide Inconel® X-750 2-7/16″
7/8″ – 9 UNC 1215 / EN1A CLF2U7-CS Zinc – – – AISI 52100 (HCHC) Chrome Alloy 302 SS 3-1/8″
3/4″-10 UNC 1215 / EN1A CLF2U3-CS Zinc – – – AISI 52100 (HCHC) Chrome Alloy 302 SS 3-1/16″
5/8″ – 11 UNC 1215 / EN1A CLF2U5-CS Zinc – – – AISI 52100 (HCHC) Chrome Alloy 302 SS 2-7/8″
