Hex Nipples Npt

The Hex Nipple NPT is a threaded fitting designed to connect two female NPT threaded connections securely in piping and fluid transfer systems. Featuring a hexagonal center section, it allows easy installation and removal using standard wrenches, ensuring a tight and reliable connection. Manufactured from high-quality materials, Hex NPT Nipples provide excellent strength, pressure resistance, and corrosion protection, making them suitable for a wide range of industrial applications.

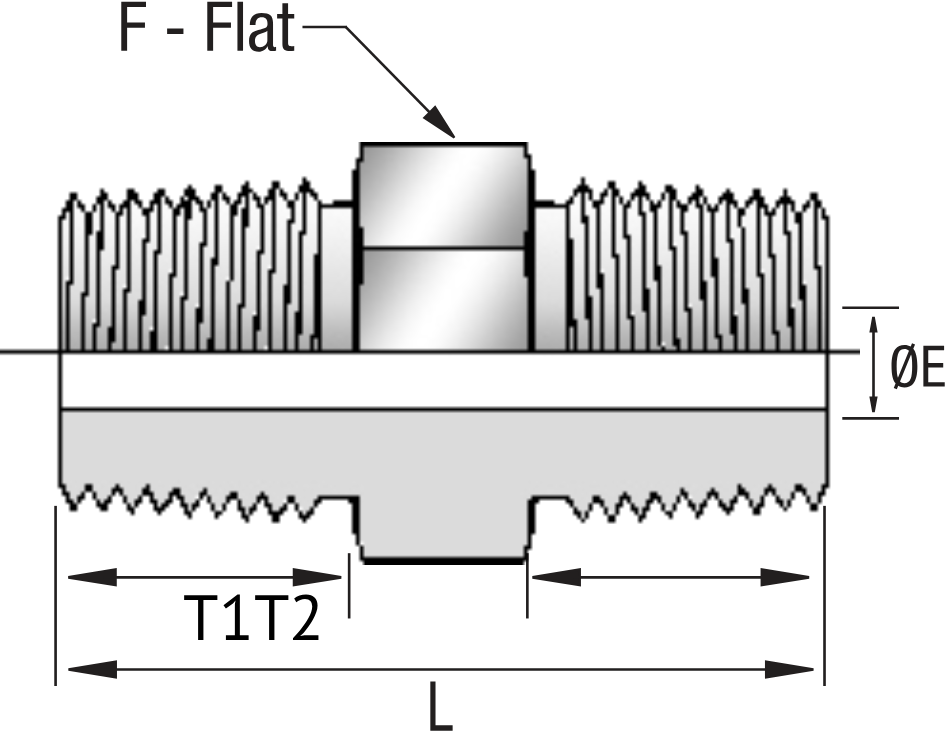

HEX NIPPLE – NPT
ORDERING NO NPT DIMENSIONS
L F T1 T2 E
VHN-SS-1N 1/16 25.6 7.9 9.7 9.7 3.0
VHN-SS-2N 1/8 25.6 11.1 9.7 9.7 4.8
VHN-SS-4N 1/4 35.6 14.3 14.2 14.2 7.1
VHN-SS-6N 3/8 36.3 17.5 14.2 14.2 9.7
VHN-SS-8N 1/2 46.7 22.2 19.1 19.1 11.9
VHN-SS-12N 3/4 46.7 27.0 19.1 19.1 15.7
VHN-SS-16N 1 58.9 34.9 23.9 23.9 22.4
VHN-SS-20N 1 1/4 62.9 44.5 23.9 23.9 28.6
VHN-SS-24N 1 1/2 66.3 50.8 26.2 26.2 34.0
VHN-SS-32N 2 77.7 69.9 26.2 26.2 45.0
