For Service to 10,000 PSI - Hex Socket Head Style

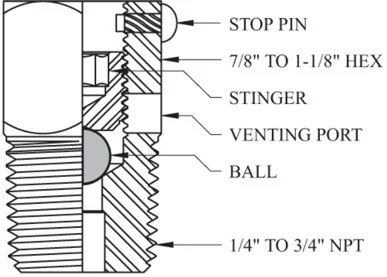

The Body Vent (Bleeder) Fittings – Hex Socket Head Style are high-pressure safety components engineered to safely vent trapped line pressure or bleed air from industrial systems up to 10,000 PSI. They feature a compact internal architecture consisting of an adjustable stinger thread, a heavy-duty stop pin, a specialized venting port, and a robust ball check system.
BODY VENT (BLEEDER) FITTINGS (HEX SOCKET HEAD STYLE) : FOR SERVICE TO 10,000 PSI
Thread Size MOC Part No HEX Size Surface Treatment Heat Treatment Ball
1/2″ NPT 1215 / EN1A BVSH8-CS 1-1/8″ Zinc – – – 440 SS / AISI 52100
316 SS BVSH8-SS – – – Annealed (NACE) Tungsten Carbide
4140 / EN19 BVSH8-C Zinc Rc 22 Max (NACE)
3/8″ NPT 1215 / EN1A BVSH6-CS 1″ Zinc – – – 440 SS / AISI 52100
316 SS BVSH6-SS – – – Annealed (NACE) Tungsten Carbide
4140 / EN19 BVSH6-C Zinc Rc 22 Max (NACE)
1/4″ NPT 1215 / EN1A BVSH4-CS 7/8″ Zinc – – – 440 SS / AISI 52100
316 SS BVSH4-SS – – – Annealed (NACE) Tungsten Carbide
4140 / EN19 BVSH4-C Zinc Rc 22 Max (NACE)
