Packing Injection Fittings (Floating Ball-Taper Cavity)

All Categories

Packing Injection Fittings

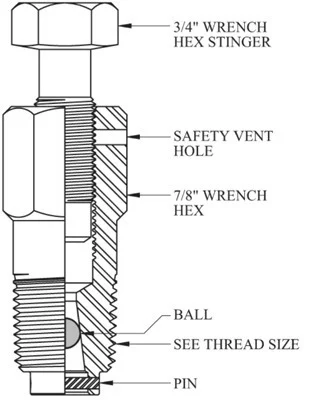

The Packing Injection Fittings (Floating Ball-Taper Cavity) are high-pressure components designed with a specialized taper cavity configuration for industrial sealant injection applications. They feature a built-in safety vent hole, a 7/8″ wrench hex body, and a 3/4″ wrench hex stinger to ensure stable, controlled torque during installation. The internal design incorporates a floating ball mechanism secured at the base by a cross pin to reliably check flow within the process system.
PACKING INJECTION FITTINGS (FLOATING BALL-TAPER CAVITY)
Thread Size MOC Part No Surface Treatment Heat Treatment Ball
1/2″ 1215 / EN1A PFIN8-CS Zinc – – – AISI 52100 (HCHC) Chrome Alloy
316 SS PFIN8-SS – – – Annealed (NACE) K-Monel / Tungsten Carbide
4140 / EN19 PFIN8-C Zinc Rc 22 Max (NACE)
3/8″ 1215 / EN1A PFIN6-CS Zinc – – – AISI 52100 (HCHC) Chrome Alloy
316 SS PFIN6-SS – – – Annealed (NACE) K-Monel / Tungsten Carbide
4140 / EN19 PFIN6-C Zinc Rc 22 Max (NACE)
1/4″ 1215 / EN1A PFIN4-CS Zinc – – – AISI 52100 (HCHC) Chrome Alloy
316 SS PFIN4-SS – – – Annealed (NACE) K-Monel / Tungsten Carbide
4140 / EN19 PFIN4-C Zinc Rc 22 Max (NACE)
