This product is a proportional relief valve designed for low-pressure and high-pressure system safety by venting excess pressure. It features a durable stainless steel structure (SS316) with options for Viton or Neoprene ‘O’ rings to ensure reliable sealing. The valve comes in multiple instrumentation end connection sizes (ranging from 1/4″ to 1/2″ in OD or NPT configurations) and is color-coded by spring configuration to calibrate precise set pressure ranges up to 6000 psi.

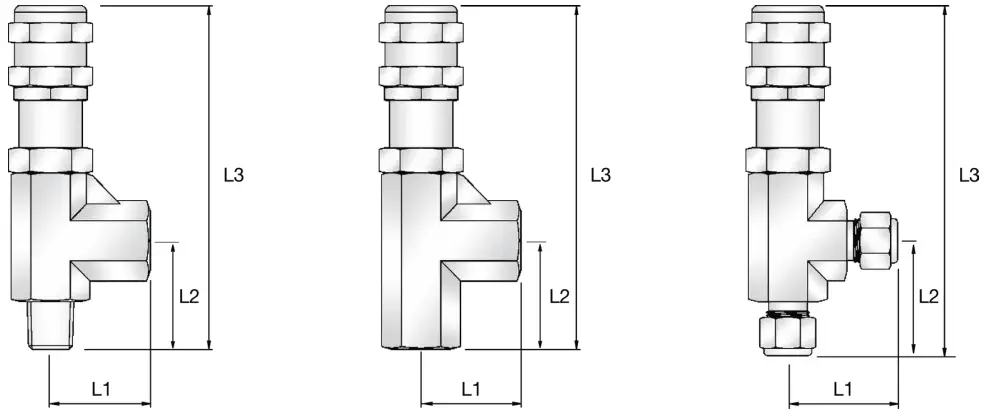

| Part No. | Orifice | End Connections | Dimensions | |||
|---|---|---|---|---|---|---|
| Inlet | Outlet | L1 | L2 | L3 | ||
| VRV-SS-4T | 4.8 | 1/4″ OD | 1/4″ OD | 40.2 | 38.8 | 107.5 |
| VRV-SS-6T | 4.8 | 3/8″ OD | 3/8″ OD | 46.4 | 46.4 | 113.5 |
| VRV-SS-8T | 6 | 1/2″ OD | 1/2″ OD | 50.5 | 50.7 | 140 |
| VRV-SS-6MT | 4.8 | 6mm OD | 6mm OD | 40.2 | 38.8 | 107.5 |
| VRV-SS-8MT | 4.8 | 8mm OD | 8mm OD | 40.2 | 38.8 | 107.5 |
| VRV-SS-10MT | 4.8 | 10 mm OD | 10 mm OD | 46.4 | 46.4 | 113.5 |
| VRV-SS-12MT | 6 | 12mm OD | 12mm OD | 50.5 | 50.7 | 140 |
| VRV-SS-4NMF | 4.8 | 1/4″ NPTM | 1/4″ NPTF | 31.5 | 33.5 | 102 |
| VRV-SS-6NMF | 4.8 | 3/8″ NPTM | 3/8″ NPTF | 33 | 34.5 | 104 |
| VRV-SS-8NMF | 8 | 1/2″ NPTM | 1/2″ NPTF | 42.5 | 50.7 | 132 |
| VRV-SS-4NF | 4.8 | 1/4″ NPTF | 1/4″ NPTF | 31.5 | 33.5 | 102 |
| VRV-SS-6NF | 4.8 | 3/8″ NPTF | 3/8″ NPTF | 36.5 | 34.2 | 104 |
| VRV-SS-8NF | 8 | 1/2″ NPTF | 1/2″ NPTF | 31.5 | 33.5 | 102 |
| VRV-SS-4NM-4T | 4.8 | 1/4″ NPTM | 1/4″ OD | 33 | 34.5 | 104 |
| VRV-SS-6NM-6T | 4.8 | 3/8″ NPTM | 3/8″ OD | 40.2 | 38.8 | 107.5 |
| VRV-SS-8NM-8T | 6 | 1/2″ NPTM | 1/2″ OD | 50.5 | 50.7 | 132 |
