Round Body – Female End Connection

All Categories

Female End Connection

Pressure Rating – 1000, 3000, 6000 PSI

The Round Body Female End Connection Ball Valves (VBV2 Series) are high-performance valves engineered for medium to high-pressure line isolation, supporting ratings across 1,000, 3,000, and 6,000 PSI. They feature a durable ASTM A479 316 stainless steel construction available in female NPT thread sizes ranging from 1/4″ to 1″.
PART NUMBER F X F A L P
VBV2-SS-4NF 1/4″ NPT 25 62 5
VBV2-SS-6NF 3/8″ NPT 32 65 8
VBV2-SS-8NF 1/2″ NPT 34 72 10
VBV2-SS-12NF 3/4″ NPT 42 84 14
VBV2-SS-16NF 1″ NPT 48 95 20

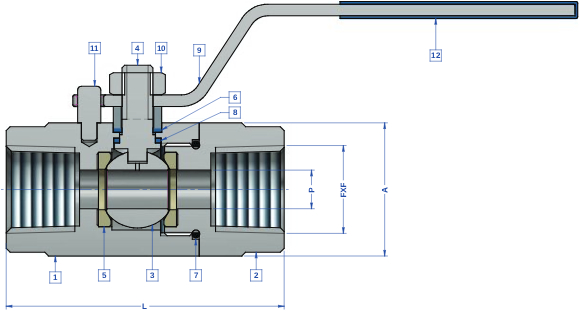

Sr. No. Description Material
1 BODY ASTM A479 S.S. 316
2 CONNECTOR ASTM A479 S.S. 316
3 BALL ASTM A479 S.S. 316
4 STEM ASTM A479 S.S. 316
5 BALL SEAL PTFE/DELRIN/PEEK
6 STEM SEAL TOP PTFE/DELRIN/PEEK
7 O-RING NBR/VITON
8 STEM SEAL PTFE/DELRIN
9 HANDLE S.S.
10 HANDLE NUT S.S.
11 HANDLE STOPER S.S.
12 HANDLE SLEEVE PVC / RUBBER
